CyboEnergy Unveils CyboInverter, the World’s First Solar Power
Mini-Inverter at Intersolar North America

July 12, 2011 – CyboEnergy, a subsidiary of CyboSoft, General Cybernation Group Inc., (Rancho Cordova, California), announced today that it is showing its patent-pending CyboInverter, the world’s first solar power Mini-Inverter at Intersolar North America in San Francisco, Calif., on July 12-14, 2011.

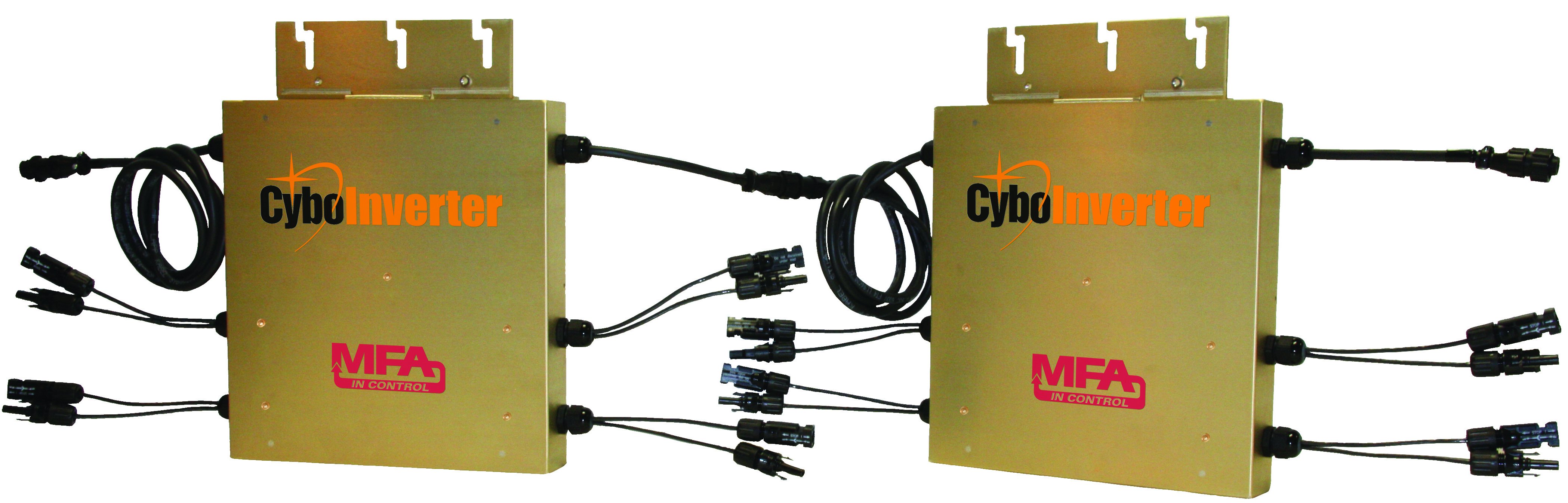

In Booth 8242, CyboEnergy is running a live CyboInverter demo. As shown in the following picture, each 4-channel CyboInverter can connect to four PV solar panels using standard MC-4 connectors. Multiple CyboInverters can easily daisy chain with AC cables, which connect to the power grid on one end. Imagine the ease of installation.






(Download a high-resolution picture at www.cyboenergy.com)





Because the CyboInverter can perform Maximum Power Point Tracking (MPPT) for each connected solar panel, it solves partial shading problems. It can connect to panels with different sizes or brands oriented in different directions or angles. This “anything goes” design significantly improves the scalability, flexibility, user-friendliness, and ROI.

CyboSoft Chairman and CyboEnergy CEO Dr. George Cheng said, “In my view, a small solar power system on a residential rooftop or even backyard can be viewed as a personal power generation plant. CyboInverters offer a scalable approach to allow people to start small and grow gradually with recurring revenue through power generation. As the solar power system price comes down and electricity price goes up, this scalable approach makes even more sense.”

As an example, one can install a small 1KW solar power system with four 250W solar panels and one 4-channel CyboInverter. During the first installation, a licensed electrician installs solar panels, Mini-Inverter, AC junction box, THHN wire, conduit and breaker to the service panel, and puts the system in service. Later, additional panels and CyboInverters can be easily added by a simple AC cable daisy chain, which can be done by almost anybody. “Since many states in the U.S. no longer offer incentives for solar power systems, this scalable approach can encourage homeowners to make a low risk yet affordable investment to build a personal power plant that can grow. This is a sustainable business model that could reach a critical mass and have a powerful impact on the energy industry,” Dr. Cheng added.

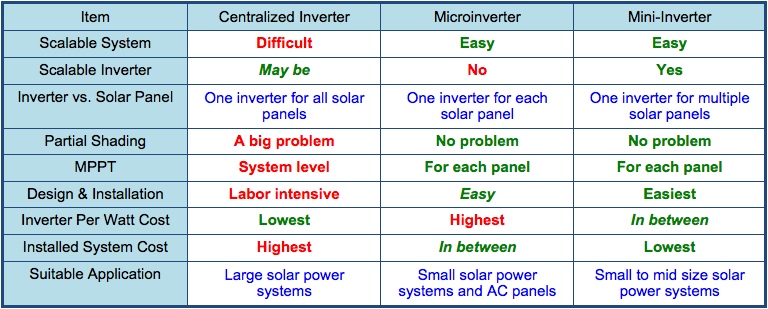

So, what really is a Mini-Inverter? CyboEnergy gives the definition based on the following table comparing (1) Centralized or String Inverters, (2) Microinverters, and (3) Mini-Inverters.

A Centralized Inverter connects to all solar panels on a string through one DC input port. It has the lowest inverter per watt cost but has serious partial shading problems as well as complex design and installation requirements. Because a Centralized Inverter can handle a large number of panels, it is well suited for large commercial and utility scale solar power systems.

A Microinverter is mounted on the back of each solar panel. Since it performs MPPT for each panel, it solves partial shading problems and makes installation easy. The Microinverter market is showing a rapid growth. However, since each Microinverter supports only one panel, it is difficult to reduce the inverter per watt cost.

CyboInverter, as the first solar power Mini-Inverter, is designed to include multiple DC input channels that can connect to multiple solar panels and perform MPPT for each channel. This is a more cost-effective approach for inverter design, manufacturing, and installation. For this reason, it can provide the lowest per watt cost for an installed system. The CyboInverter’s scalable capability makes it ideal for small- to mid-size solar power systems, and potentially suitable for large or even utility scale projects.

For more information and to see a product demonstration, please visit the CyboEnergy booth #8242 on the second level at Moscone West Convention Center, Intersolar North America 2011 in San Francisco on July 12-14, 2011.

About CyboEnergy and CyboSoft
CyboEnergy is a subsidiary of CyboSoft, General Cybernation Group Inc., focusing on the development, manufacturing, marketing, and services of the product lines in the energy and clean energy field.

Founded in 1994, CyboSoft is the leader in control technology serving the worldwide process control, building control, and equipment control markets. CyboSoft’s patented Model-Free Adaptive (MFA) control technology for automatically controlling physical processes is a major breakthrough. No other comparable technology possesses all the attributes of MFA. CyboSoft received the 2007 Frost & Sullivan "North America Technology Leadership Award" in the field of Industrial Automation.

For more information, contact: CyboEnergy, 2868 Prospect Park Drive, Third Floor, Rancho Cordova, CA 95670 USA. Tel: (916) 631-6313, Fax: (916) 631-6312, e-mail: Mary Lou Davis, mldavis@cybosoft.com, Web site: www.cyboenergy.com.
